Metal Sealed Wellhead

Overview:The metal seal of the wellhead is sealed with the "RCMS" metal seal, which is safe and reliable, and rotates; The tubing hanger and casing hanger are of the mandrel type, and are sealed with "XEMS" metal, which is reliable in sealing and strong in corrosion resistance; The tubing hanger extends the neck and is sealed with "SBMS" metal. The nominal pressure of the metal-sealed wellhead can reach 20000psi, and the working temperature: -18 ℃ ~ 346 ℃ (Y).
Contact
  • Product introduction
  • Product Features
  • The metal seal of the wellhead is sealed with the "RCMS" metal seal, which is safe and reliable, and rotates;

    The tubing hanger and casing hanger are of the mandrel type, and are sealed with "XEMS" metal, which is reliable in sealing and strong in corrosion resistance;

    The tubing hanger extends the neck and is sealed with "SBMS" metal.

    The nominal pressure of the metal-sealed wellhead can reach 20000psi, and the working temperature: -18 ~ 346 (Y).

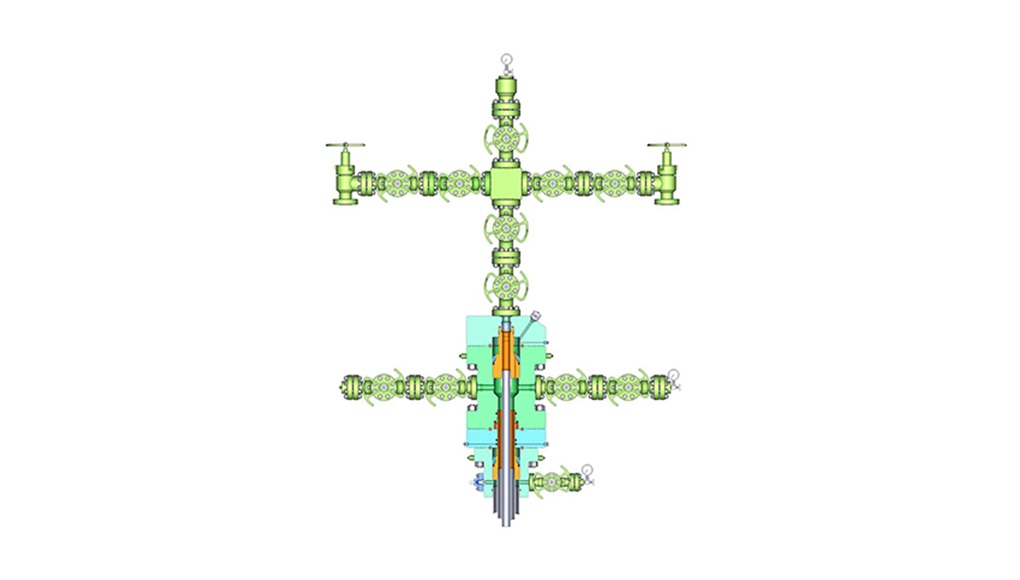

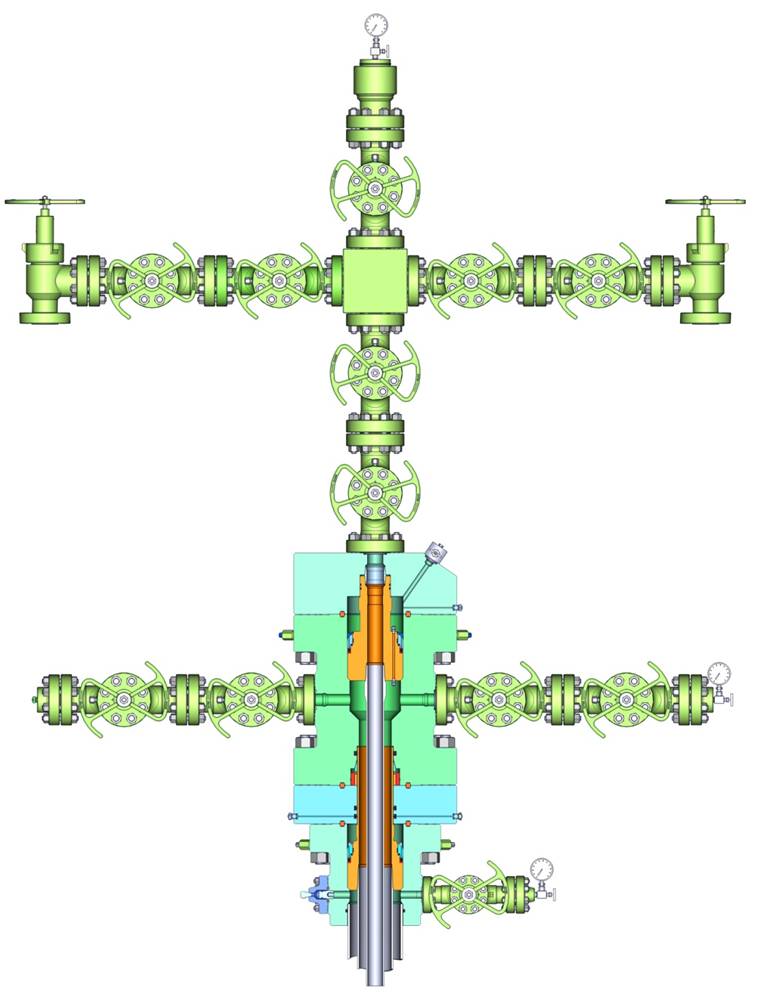

    Metal Sealed Wellhead(图1)

  • Working Pressure:

    2000PSI-20000PSI

    Working Medium:

    Oil, Gas, Mud, Gas containing H2S and   CO2

    Working Temperature:

    -18~346 (Y)

    Material Level:

    AA/DD, BB/EE, CC/FF, HH

    PSL:

    1~3

    PR:

    1~2
