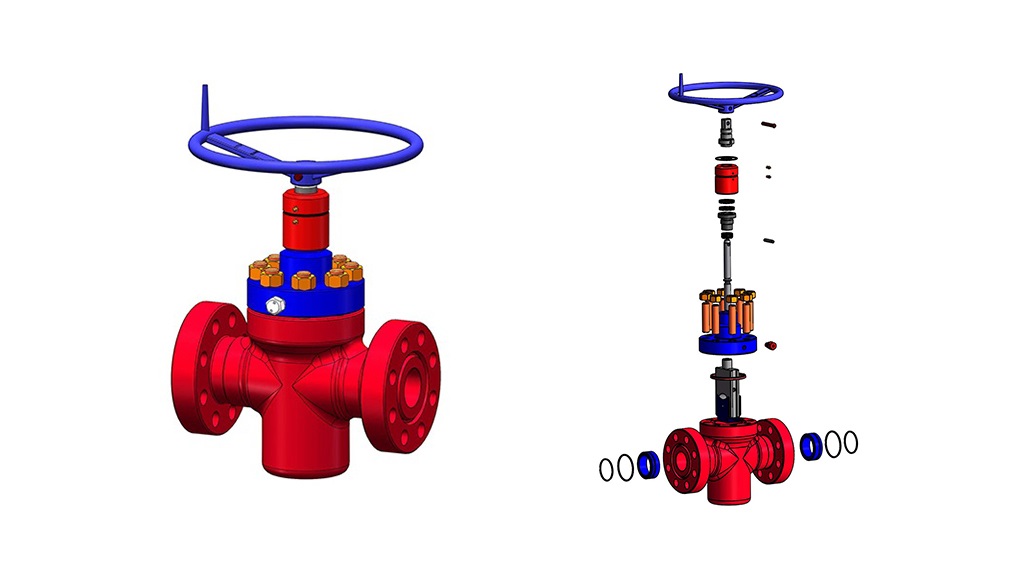

BENOSTON's single seat flat gate valves are designed in accordance with API 6A and NACE MR-01-75, with strict quality control in compliance with APIQ1. This type of flat gate valve includes flange end and threaded end two structural forms, and can provide both manual and hydraulic operation types. Large diameter products with ball screw design. Easier to operate.
Features:
Forge body and bonnet.
Low operating torque.
Metal seal
Ball screw lever for manual operation (large diameter valve)
Bidirectional plate high pressure gate valve
Flange and thread outlets are available
Designed into a sealed structure, repairs can be completed under pressure
Pressure up to 15,000 psi
Size | 2000 psi | 3000 psi | 5000 psi | 10000 psi | 15000 psi |
1-13/16″ | √ | √ | √ | √ | √ |
2-1/16″ | √ | √ | √ | √ | √ |
2-9/16″ | √ | √ | √ | √ | √ |
3-1/16″ | —— | —— | —— | √ | √ |
3-1/8″ | √ | √ | √ | —— | —— |
4-1/16″ | √ | √ | √ | √ | √ |
5-1/8″ | √ | √ | √ | √ | √ |
7-1/16″x 6-3/8″ | √ | √ | √ | √ | √ |
7-1/16″ | √ | √ | √ | √ | √ |
SIZE: 1-13/16" ~ 7-1/16"
TEMP: K ~ Y
PRESSURE: 2000 ~ 15000psi
PR: 1 ~ 2
PSL: 1 ~ 3
MATL: AA/DD, BB/EE, CC/FF
